Machine Detailed Parameters | |

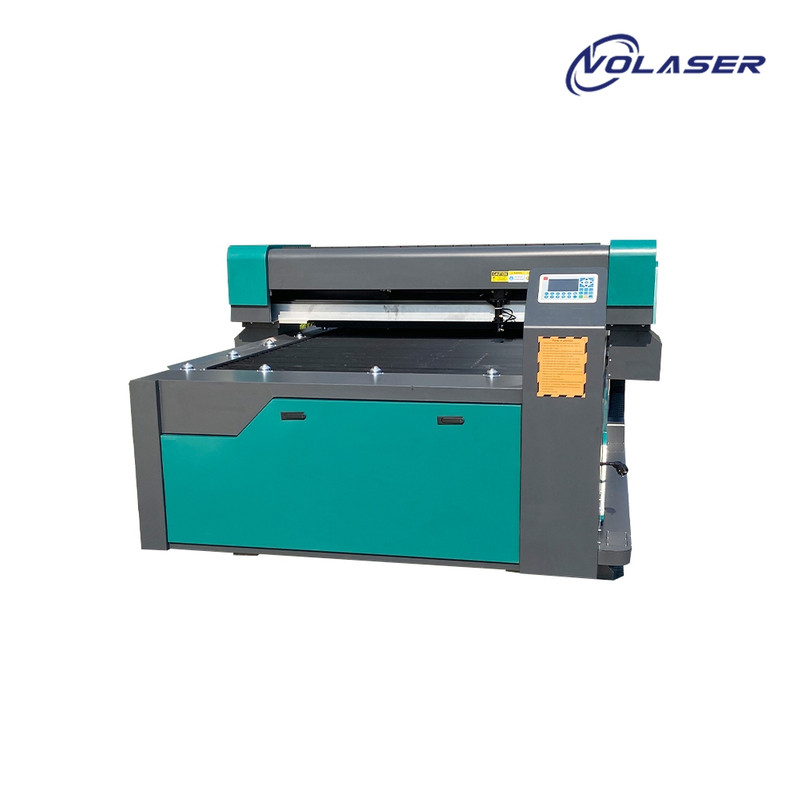

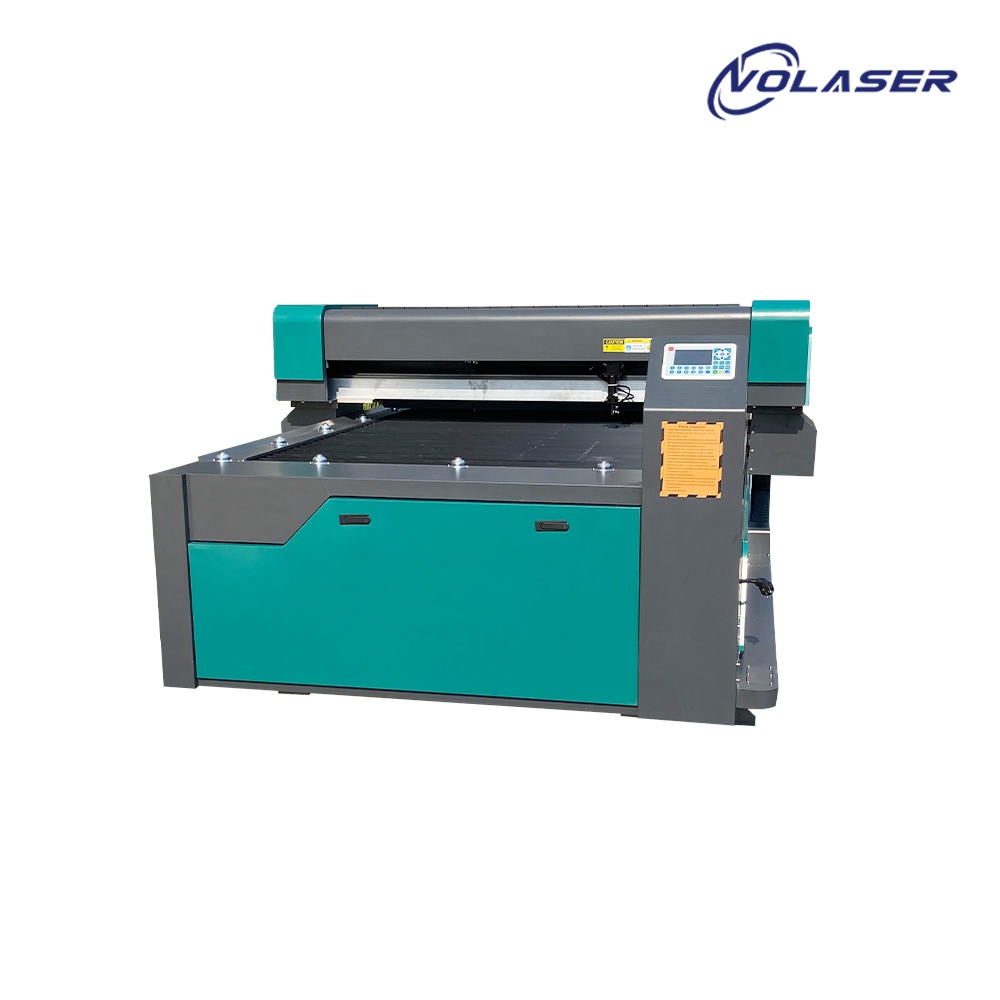

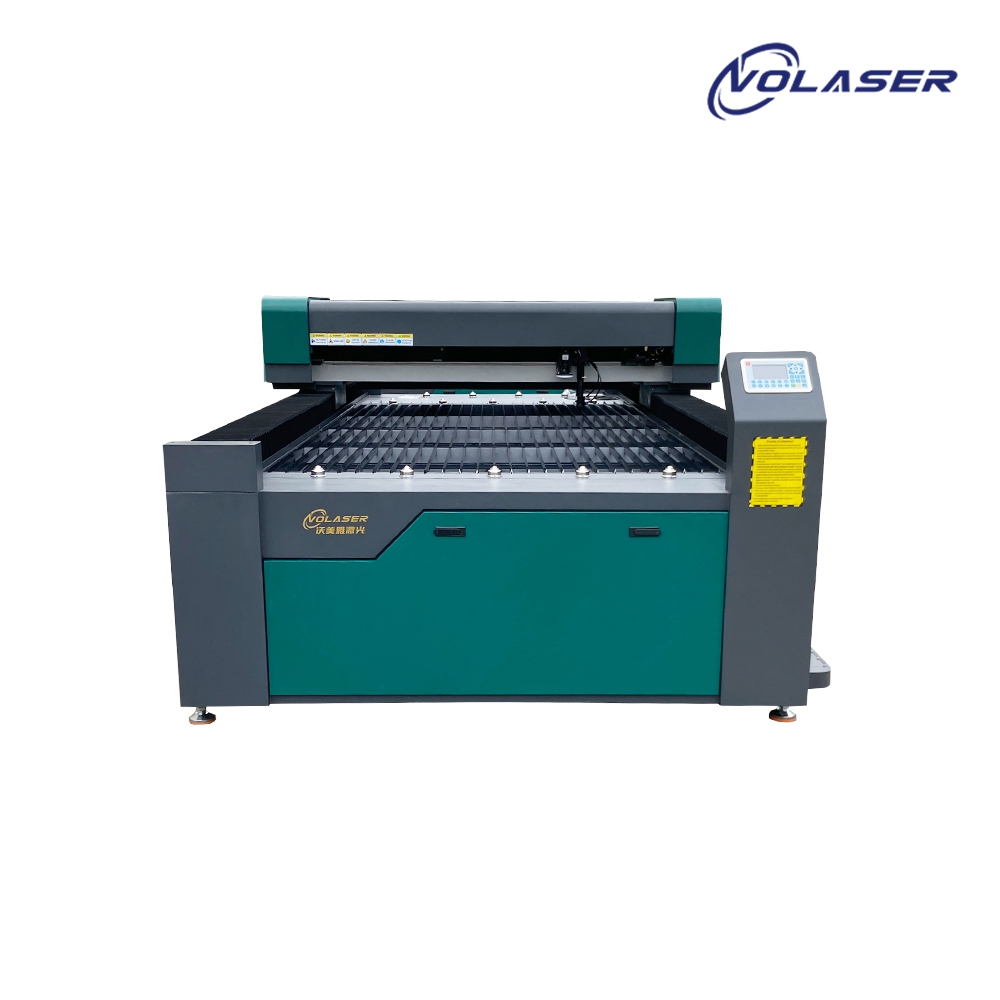

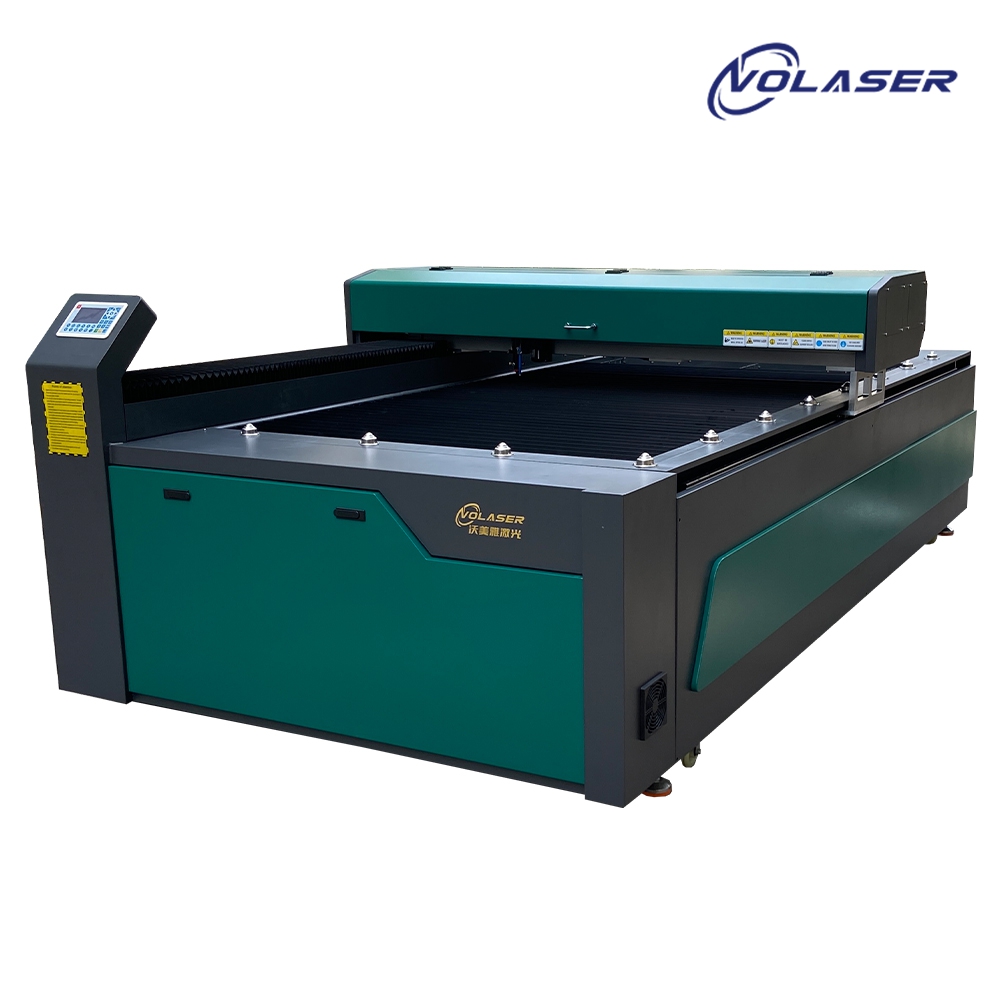

Product Name | CO2 laser cutting machine |
Model | WMY-1325/1530 |
colour | Customized according to customer requirements |
work area | 1300x2500mm 1500x2500mm 1500x3000mm |
laser power | 180W/300W/500W/600W |
Laser type | Sealed CO2 laser tube |
Work platform | Knife platform or honeycomb platform, optional. |
Working speed | 0-1000mm/s |
Reset position accuracy | ±0.05mm |
Graphics format support | BMP, PLT, DST, AI, DXF, etc |
Cooling mode | Constant water distribution system |
working voltage | AC220±10%, 50-60HZ, 10a max |
Operating temperature | 0-45°C |
Humidity operation | 5%-95% |
Transmission mode | Rack-and-pinion drive |
Drive motor | Servo Electric machinery |
Exhaust method | Exhausted by funnel |
safety protection | Blowing to prevent combustion |
Applicable materials | Acrylic, Stainless steel, Carbon steel, MDF, Die board |
Applicable industry | Advertising industry (stainless steel, acrylic acid), sheet metal industry (Tan Gang), packaging industry (template) and so on. |
It can be used in bamboo, crystal, horn, paper plate, lexiglass, marble, cloth, leather, rubber, plastic, etc. Clothing, embroidery, cloth toys, household decoration and cloth art, Handbags, gloves, toys industry leather, leather cutting and surface carving. Crafts, Models, Advertising, Decorative Electrical Appliances, Acrylic Plates, Medium Density in Plastic Industry Decoration board, etc.
