Machine Detailed Parameters | |
Product Name | 1814 Fabric Plush Fabric Flexible Material Laser Cutting Machine |
Model | WMY 1814 |
colour | Customization according to customer requirements |
work area | 1800 x1400mm |
Laser type | Sealed CO2 laser tube |
laser power | 60W 80W 100W 150W 180W 300W |
Cooling mode | Water Cooling Protection System |
Workbench | Honeycomb Platform |
Carving speed | 0-60 000 mm/min |
cutting speed | 0-10000mm/min |
Resolving power | + 0.05mm |
working voltage | AC220 + 10%, 50 - 60 Hz, 10A Max |
Minimum character | English 1X1 mm |
Supported graphics format | BMP, PCX, TGA, TIF, PLT, CDR |
control software | Coreldraw, Autocad, Artcut, Photoshop |
driving system | High Speed 57 Stepper |
Optional parts | Water chiller CW3000/CW5000/CW5200/CW5300/CW6000/CW6200, rotating device |
working temperature | 0-45 degrees C |
Working humidity | 5% - 95% |
Applicable materials | Fabric Leatherwear. Plush cloth Clothes felt. sheet. Quilt cover. curtain Shoe fabric Flexible materials such as sole materials |
It can be used in, cloth, leather, rubber, plastic, etc. Clothing, embroidery, cloth toys, household decoration and cfoth art, Handbags, gloves, toys industry leather, leather cutting and surface carving.

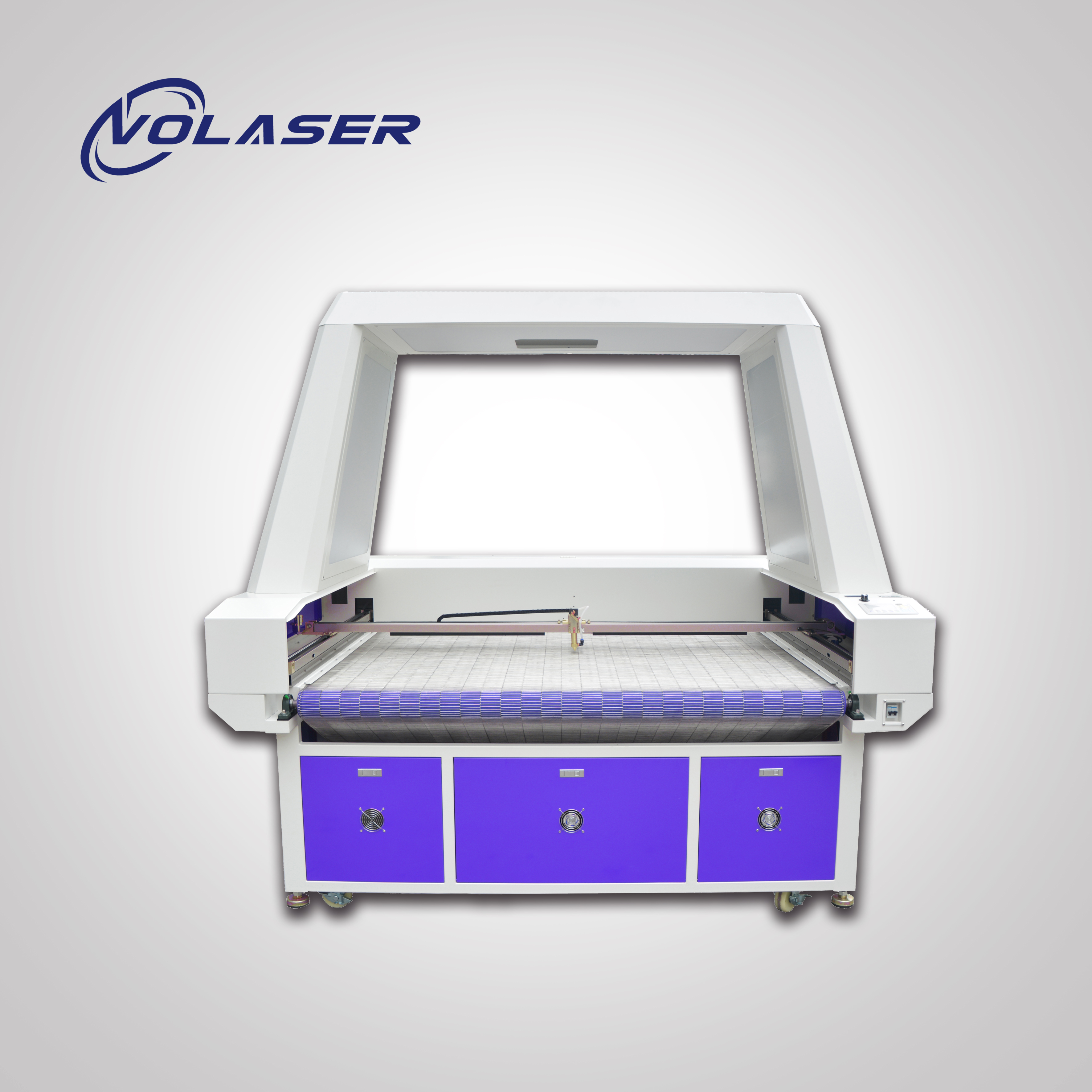

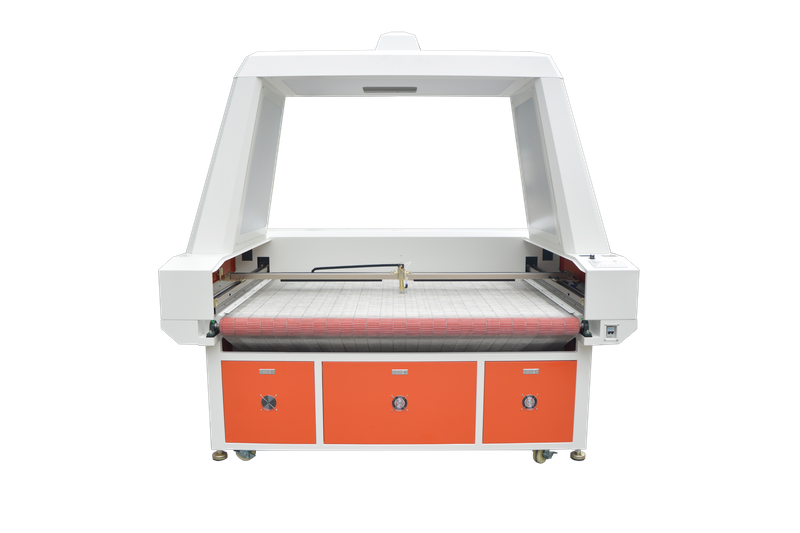

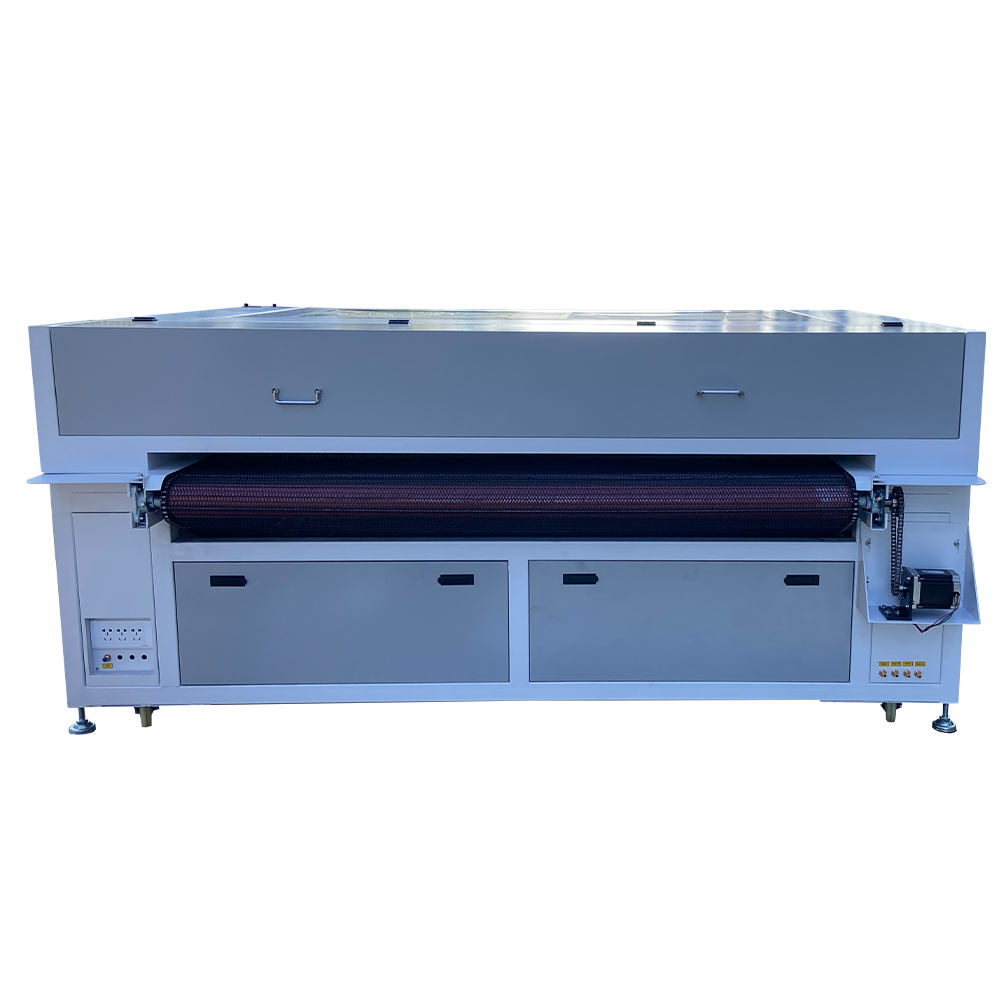

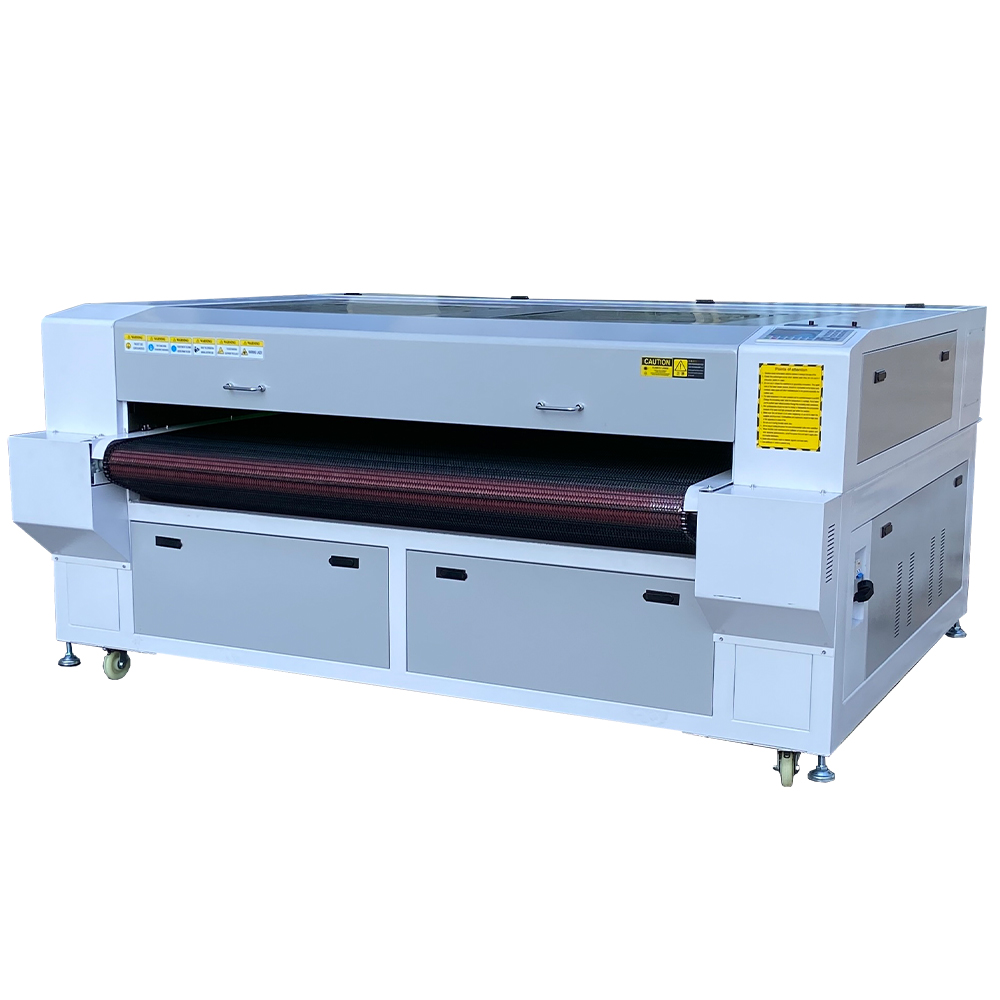

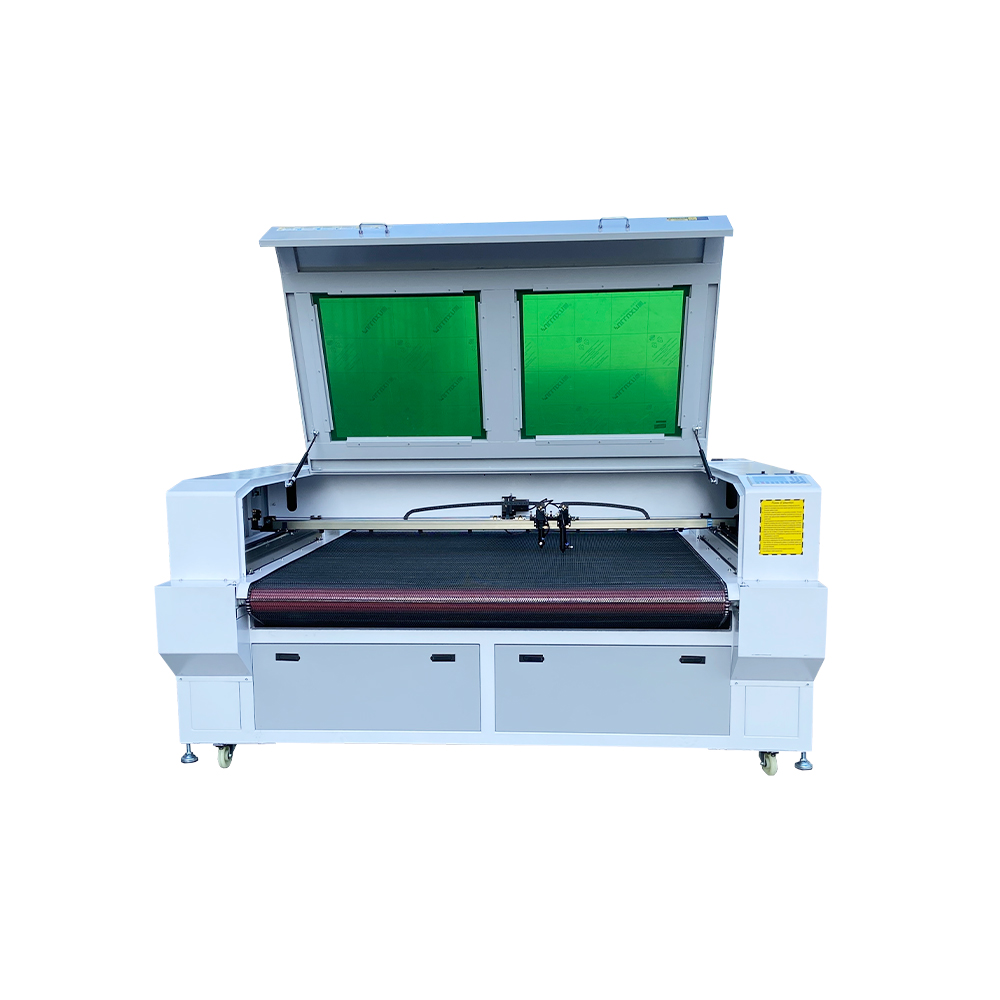

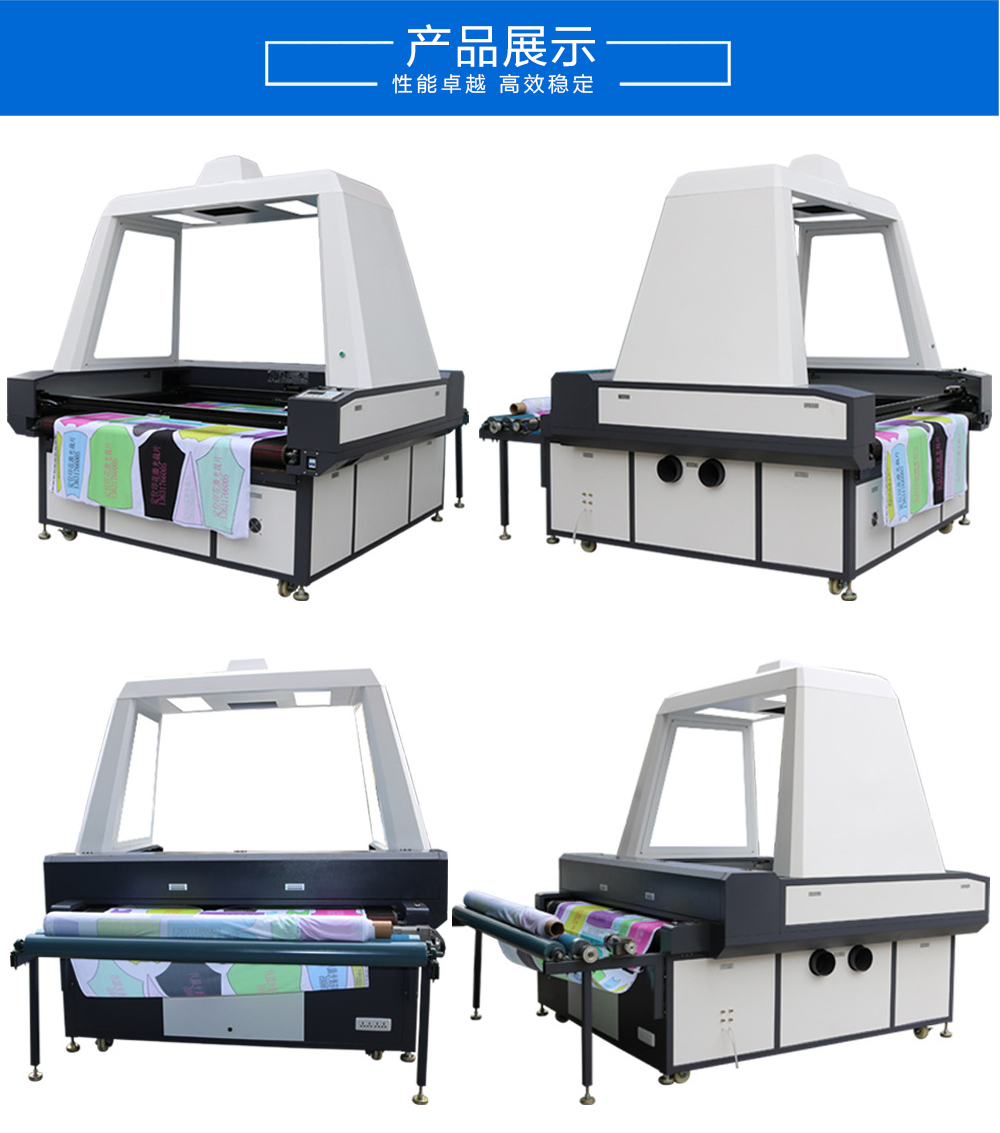

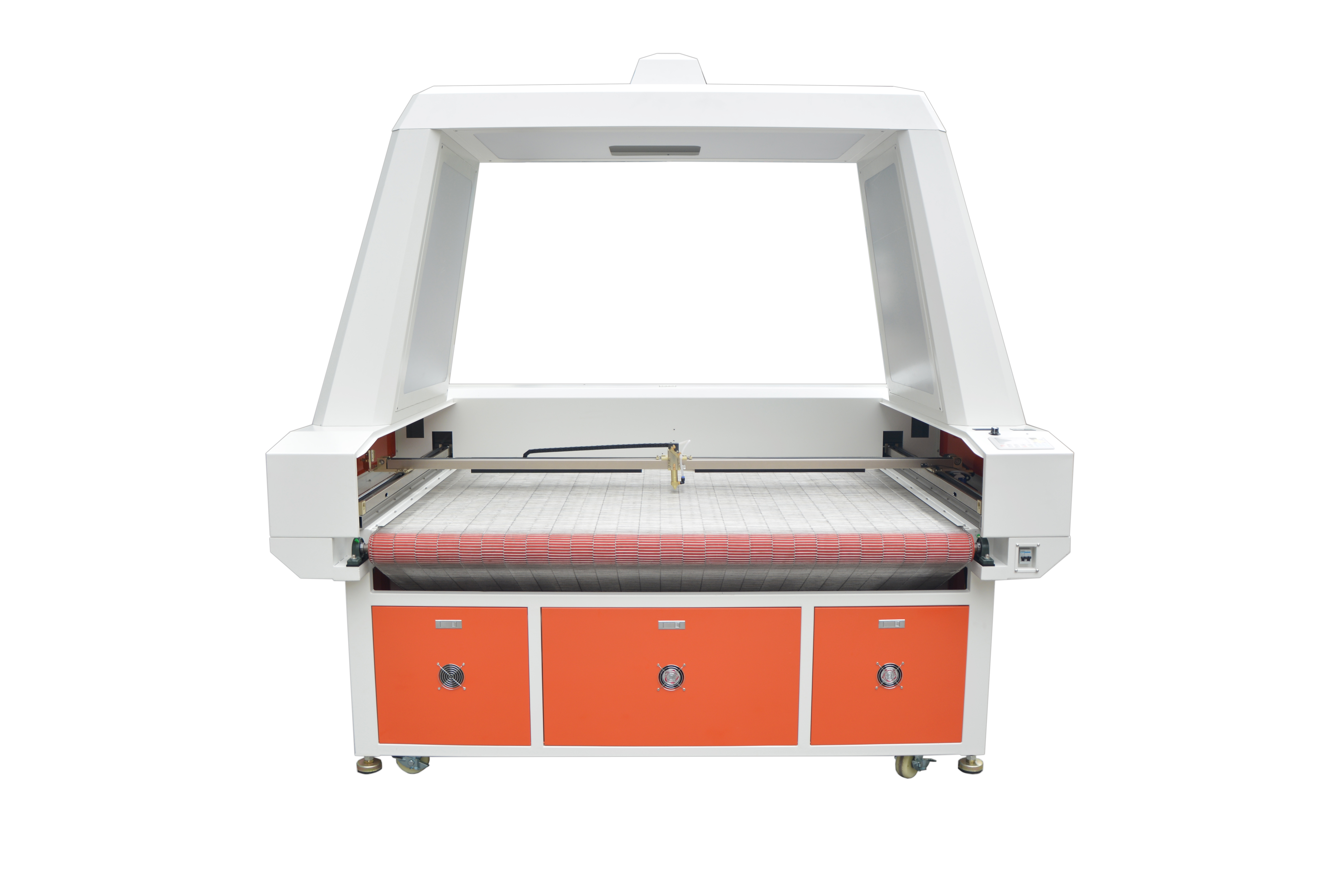

Machine Display
Machine Detailed Parameters | |
Product Name | 1814 Fabric Plush Fabric Flexible Material Laser Cutting Machine |
Model | WMY 1814 |
colour | Customization according to customer requirements |
work area | 1800 x1400mm |
Laser type | Sealed CO2 laser tube |
laser power | 60W 80W 100W 150W 180W 300W |
Cooling mode | Water Cooling Protection System |
Workbench | Honeycomb Platform |
Carving speed | 0-60 000 mm/min |
cutting speed | 0-10000mm/min |
Resolving power | + 0.05mm |
working voltage | AC220 + 10%, 50 - 60 Hz, 10A Max |
Minimum character | English 1X1 mm |
Supported graphics format | BMP, PCX, TGA, TIF, PLT, CDR |
control software | Coreldraw, Autocad, Artcut, Photoshop |
driving system | High Speed 57 Stepper |
Optional parts | Water chiller CW3000/CW5000/CW5200/CW5300/CW6000/CW6200, rotating device |
working temperature | 0-45 degrees C |
Working humidity | 5% - 95% |
Applicable materials | Fabric Leatherwear. Plush cloth Clothes felt. sheet. Quilt cover. curtain Shoe fabric Flexible materials such as sole materials |
It can be used in, cloth, leather, rubber, plastic, etc. Clothing, embroidery, cloth toys, household decoration and cfoth art, Handbags, gloves, toys industry leather, leather cutting and surface carving.
Machine Display
